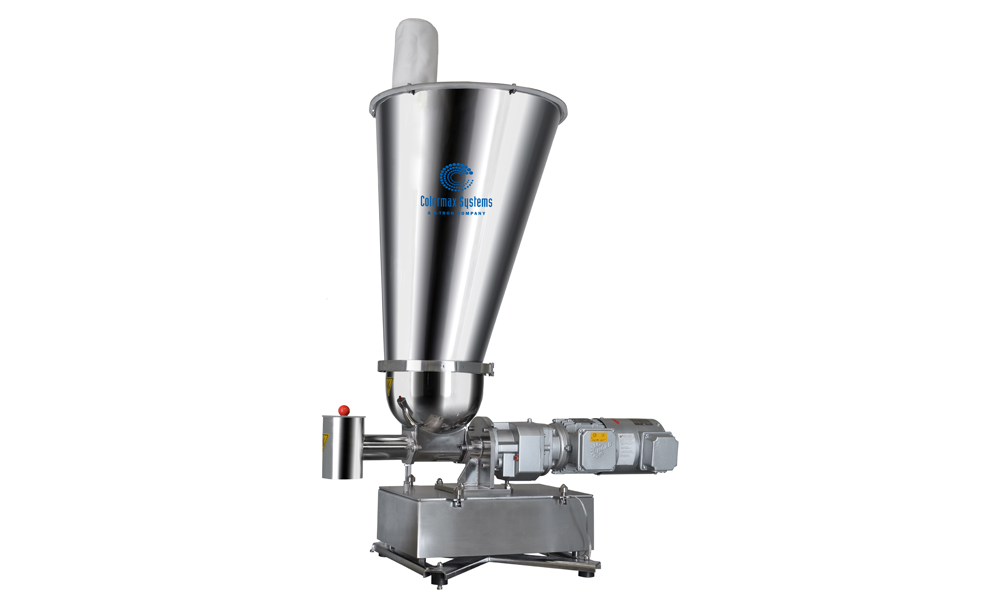

Single Screw Loss-in-Weight Feeders

Feed Model C/S-LW-NS60
Feed Rates 5-1,800L/h
Material Pellet, free flowing powder, etc.
Asymmetrical Hopper 40L / 80L / 120L
Symmetrical Hopper 10L / 80L / 120L / 180L

Colormax Systems Single Screw Loss-in-Weight Feeders are designed to provide high-accuracy, high-value gravimetric feeding for a variety of materials including pellets, granules, free flowing powders and other bulk materials. Feed rates are possible from 5-1200 L/hr.

Single screw feeders are available with a wide range of interchangeable feed screws depending on the material being fed. The feeder is mounted on the K-Tron Colormax C2 scale, which uses a high speed and highly accurate load cell. The scale material is stainless steel and the scale housing is completely enclosed. All material contact parts are stainless steel. The feeder is easily disassembled for cleaning or change-over. The special design of the feeding bowl is unique and patented.

Optimum feed screws are determined based on material characteristics of the bulk solid to be fed. Following are estimated feed rates for free flowing materials. For feed rates at either end of the range, feeder testing is recommended.

Designed for high product quality applications

Loss-in-weight feeders are ideal for applications where the bulk density of the material being fed is not consistent, or when precise feed accuracy is critical to the quality of the end product. These feeders are found in batch and continuous applications and are often required for continuous processes, such as extrusion, where precise ratios of multiple ingredients must be controlled.

At Colormax Systems, we make loss-in-weight screw feeders that provide highly accurate, reliable and consistent performance. Single screw loss-in-weight feeders are the best choice for easy flowing materials, while twin screw loss-in-weight feeders are the best solution for more difficult to handle bulk materials. Loss-in-weight screw feeders are available in a variety of models and hopper sizes to meet a wide range of feed rates from 5-8000 L/hr.

High Precision Load Cells and Gravimetric Feeder Controls

Colormax Systems brings high-accuracy Western technology to value-priced gravimetric feeders. Feeder weigh modules provide split-second, high-precision weighing in the milligram range and are designed for harsh industrial environments.

With patented software developed by our international parent company, Colormax Systems Loss-in-Weight Feeders provide consistent, accurate, reliable and repeatable results. The gravimetric controller and operation interface allow for individual unit and recipe control. Each feeder has its own control board. Connection between control boards and operation interface is supported by industrial protocol.
