SW2400 Powder and Pellet Receivers

Pellet Receivers (with standard gravity discharge gate)
Type Receiving Volume Conveying Rate
SW2406  1 dm3   327 kg/hr
SW2410 10 dm3  1,180 kg/hr
SW2415 26 dm3 2,722 kg/hr
SW2423 44 dm3 3,402 kg/hr
SW2424 134 dm3 6,804 kg/hr
Note: Rates are based on a system profile of 15.2 m horizontal, 4.6 m vertical, 3 m hose, 2 x 90° bends
* Convey rates may vary pending on product characteristics and conveying distance.

Powder Receivers (with standard gravity discharge gate)
Type Receiving Volume Conveying Rate
SW2410 10 dm3 408 kg/hr
SW2415 26 dm3 1,000 kg/hr
SW2420 33 dm3 1225 kg/hr
SW2423 44 dm3 1,406 kg/hr
SW2424 134 dm3 3,175 kg/hr
Note: Rates are based on a system profile of 15.2 m horizontal, 4.6 m vertical, 3 m hose, 2 x 90° bends
* Convey rates may vary pending on product characteristics and conveying distance.

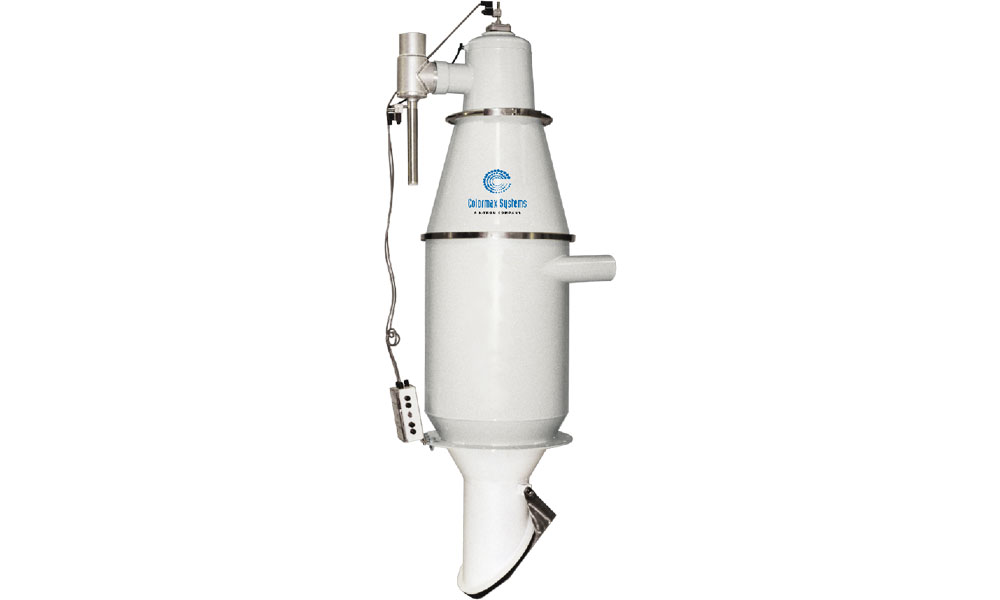

SW2400 Powder and Pellet Receivers – for a Wide Range of Pneumatic Conveying Needs

SW2400 Powder and Pellet Receivers provide a high capacity sequencing system designed to handle powder, pellet, regrind and granular materials. Each receiver has a stainless check valve to allow multiple receivers to draw material from a common conveying line.The polyester cartridge filter is equipped with automatic reverse jet pulsing for thorough cleaning.

Applications include railcar unloading, silo to daybin transfer, in-plant transfer or feeder refill.

Various models available in carbon steel (painted), stainless steel or aluminum

All models feature quick connect clamps for easy cleaning and filter maintenance.

Self-contained loaders feature an integrated vacuum pump.

Material conveying principle – Pneumatic, vacuum, dilute phase and dense phase conveying

Materials handled – Ability to handle a wide range of pellets and powders.

Conveying rates – Up to 6,800 kg/hr.

Certification – Hazardous area models availablefor NEC North American as well as ATEX standards
